PEVEX 40 INSET WOOD BURNING & MULTIFUEL STOVE

PEVEX 40 INSET STOVE

PEVEX INSET STOVE COLLECTION

British-made inset wood burning and multifuel stove, designed to transform an existing open fireplace into an efficient and stylish heating feature. Delivering 4.9kW nominal output and 77.3% wood-burning efficiency, it combines compact dimensions with radiant and convected warmth.

4.9kW

Nominal output

2-6kW

Output range

77%

Efficiency

Energy rating

355mm

Body depth

290mm

Log length

DOWNLOAD BROCHURE (PDF)

ASK PEVEX A QUESTION

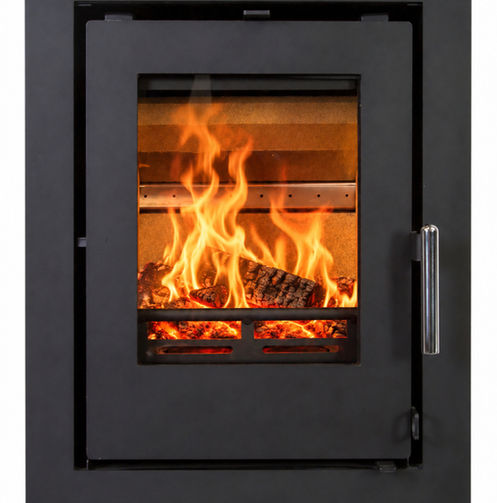

Pevex 40 Inset Multifuel Stove

The Pevex 40 Inset is a British-made inset wood burning and multifuel stove, designed to transform a traditional open fireplace into a more efficient and attractive heating feature.

Designed with practicality in mind, the Pevex 40 Inset is particularly suited to existing British fireplaces, offering a compact installation with a generous viewing window and effective heat distribution through a combination of radiant and convected warmth.

Delivering a nominal heat output of 4.9kW and a tested wood-burning efficiency of 77.3%, this versatile inset stove provides an economical alternative to an inefficient open fire.

Manufactured in the UK, the Pevex 40 Inset features a robust steel construction, stainless steel door handle and independently adjustable air controls for straightforward operation.

Available with a choice of three-sided or four-sided frames, the stove can be installed at hearth level or within a suitably prepared raised fireplace opening, making it ideal for both traditional and contemporary interiors.

Features

British-made inset wood burning and multifuel stove
4.9kW nominal heat output
77.3% efficiency when burning wood
Generous firebox accommodating logs up to 290mm
Tested to EN 16510-2-2
DEFRA exempt appliance for use in smoke control areas, subject to approved fuels and operating conditions
Ecodesign compliant
Radiant and convected heat output
Stainless steel door handle and easy-to-use air controls
Choice of three-sided or four-sided installation frames
Options
Three-sided 50mm frame for hearth-level installation
Four-sided 50mm frame for raised fireplace installations

Options

Three-sided 50mm frame for hearth-level installation
Four-sided 50mm frame for raised fireplace installations

Special orders

Custom made frame sizes

Pevex 40 Inset Specifications

SPECIFICATIONS

Specification	Value

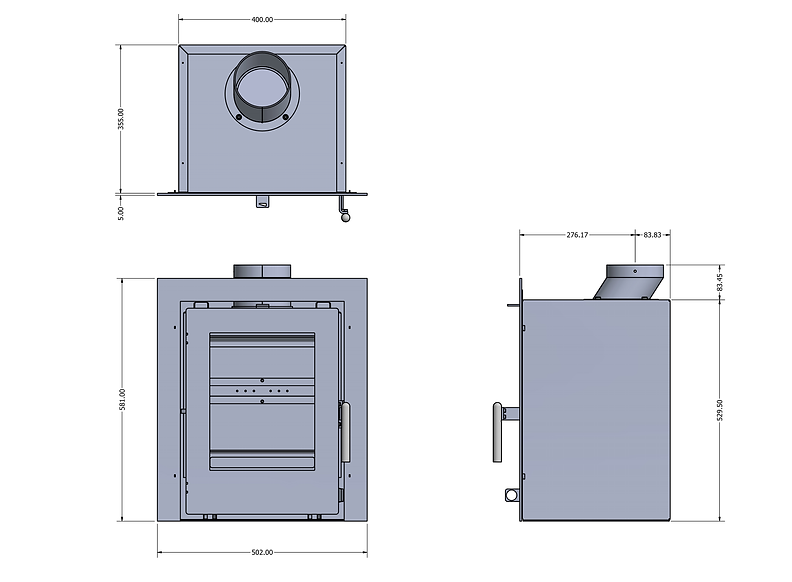

Width x depth x height (mm)	502 x 355 x 581 (50mm 3 sided frame)
Weight (kg)	65
Maximum log length (mm)	290
Flue diameter and outlet position	125 mm, top
Nominal heat output (kW)	4.9
Rear of stove to centre of top flue outlet (mm)	250
Distance to combustibles - rear (mm)	100
Distance to combustibles - sides (mm)	200
Distance to combustibles - above (mm)	250
Distance to combustibles - front (mm)	400
Efficiency (wood)	77.3%
CO at 13% O₂ (wood)	0.0832%
NOx at 13% O₂ (wood)	123 mg/m³
OGC at 13% O₂ (wood)	105 mg/m³
Dust at 13% O₂ (wood)	39 mg/m³
Reported test standard	EN 16510-2-2
Ecodesign approved	✓
DEFRA approved	✓
