BRIGHTWELL UK BUILT STOVES
BRIGHTWELL 400P

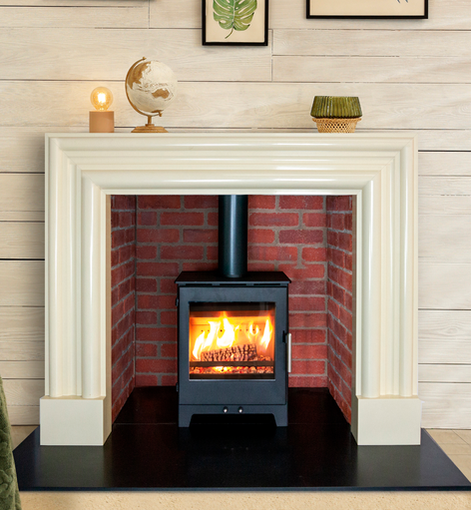

The Brightwell 400P Multifuel Stove
The Brightwell 400P combines modern, unfussy lines with a beautifully wide viewing window that showcases the flames in full clarity. Its large glass door creates an impressive focal point, offering a mesmerising flame picture that brings warmth, comfort and a welcoming atmosphere to any living space.
Simple push‑pull air controls positioned beneath the door make adjusting the burn effortless, giving you smooth, responsive control over both wood and solid fuel. This allows you to fine‑tune the fire to achieve the perfect balance of heat, comfort and clean combustion.
For added presence, the stove can be elevated with an optional 350mm logstore, improving loading height and enhancing the view of the fire. Homes requiring an external air supply can also benefit from a dedicated Fresh Air adaptor, available separately — an important addition for modern airtight properties.
Features
-
4.9kW nominal output
-
84.8% efficiency (wood)
-
81.5 efficiency (Solid fuel)
-
Convector top plate
-
Stainless steel handle and air control knobs
-
Heavy duty 5mm steel body and 8mm steel top plate
-
Cast iron grate
-
Max log length of 325mm
-
Simple to use air sliders to control both primary and secondary air wash to keep glass clean
-
A+ Energy efficiency
-
Ecodesign
-
Defra approved
Options
-
Available with an optional 350mm log store
-
Black or chrome handle and air control knobs or wooden handle option
-
76mm dia fresh air adaptor
SPECIFICATIONS
Specification | Brightwell 400P |
|---|---|
Width x depth x height (mm) | 445 x 535 x 568 |
Weight (kg) | 81 |
Log length (mm) | 325 |
Flue dia. (mm) outlet & position | 128 Top or rear |
Nominal output (kW) | 4.9 |
Range rating (kW) | 2-6 |
Distance from rear of stove to centre of top flue outlet (mm) | 148 |
Distance to flammable materials - From rear (mm) | 350 |
Distance to flammable materials - From sides (mm) | 500 |
Distance to flammable materials - From front/rear (mm) | 800 |
Heating area (m²) | 20-90 |
Efficiency (net): Wood/Solid fuel | 84.8%/81.5% |
OGC @ 13% O2 (mg/m3): Wood/Solid fuel | 109/13 |
CO% @ 13% O2 (mg/m3): Wood/Solid fuel | 1375/625 |
Particulates (mg/m3): Wood/Solid fuel | 25/21 |
Certified | UKCA |
Ecodesign | Yes |
DEFRA approved | Yes |
BRIGHTWELL 400P DRAWINGS
