Brightwell 500L in Modern

BRIGHTWELL DOUBLE SIDED WOOD BURNING STOVE

BRIGHTWELL 900 DOUBLE SIDED

BRIGHTWELL 900 DOUBLE SIDED WOOD BURNING STOVE

The Brightwell 900 Double Sided is a British-made 9kW double-sided wood burning stove, designed to provide warmth and an impressive view of the flames from two adjoining rooms. Ideal for open-plan living spaces and fireplace openings between rooms, this substantial stove combines large viewing windows on both sides with robust steel and cast-iron construction. With a generous 400mm log capacity and a 4–12kW output range, the Brightwell 900 delivers powerful heating performance while creating a striking focal point in the home.

Brightwell 900 Double Sided

The Brightwell 900 Double Sided is a powerful 9kW Ecodesign stove engineered for open‑plan living and dual‑room installations. With an impressive 79% efficiency and a wide 4–12kW heat range, it delivers generous warmth to both sides of a dividing fireplace, creating a dramatic centrepiece that can be enjoyed from two rooms at once.

​

Modern, unfussy lines and twin cast‑iron doors provide clear, uninterrupted views of the flames, allowing you to appreciate the fire burning brightly and lazily within the chamber. The convector top plate and heavy‑duty steel body ensure long‑lasting durability, while the push‑pull air controls beneath each door offer smooth, precise adjustment of primary and secondary air. This keeps the glass clear on both sides and helps you achieve the perfect balance of comfort, harmony and efficient combustion.

​

For added presence, the Brightwell 900 can be elevated with an optional 200mm or 300mm logstore, raising the stove for easier loading and an enhanced view of the fire. Homes requiring an external air supply can also benefit from a dedicated Fresh Air adaptor, available separately — an important addition for modern airtight properties.

Features

✓ 9kW Nominal Heat Output

Powerful heat output suited to larger rooms and open-plan living spaces.

✓ 79% Efficiency

Efficient combustion delivers strong heating performance.

✓ 400mm Log Length

Generous firebox accommodates logs up to 400mm in length.

✓ Cast Iron Doors

Robust construction provides durability and a quality finish.

✓ Heavy-Duty Steel Construction

Built with a 5mm steel body and substantial 12mm steel top plate.

✓ Twin Cast Iron Grates

Two robust grates provide effective fuel support across the firebox.

✓ Independent Air

ControlsSimple air sliders control primary and secondary air for precise combustion.

✓ Airwash System

Helps maintain a clear view of the fire through the glass on both sides.

✓ Convector Top PlateDesigned to enhance the circulation of heat into the room.

✓ Ecodesign Compliant

Designed to meet modern efficiency and emissions requirements.

✓ A Energy Rating

Rated A for energy efficiency.

SPECIFICATIONS

Brightwell anchor spec
Specification
Brightwell 900 Double Sided
Width x depth x height (mm)
542 x 542 x 618
Weight (kg)
155
Log length (mm)
400
Flue dia. (mm) outlet & position
155 Top
Nominal output (kW)
9
Range rating (kW)
4-12
Distance from rear of stove to centre of top flue outlet (mm)
281
Distance to flammable materials:
From sides (mm)
580
From door front (mm)
1050
Heating area (m²)
20-180
Efficiency (net): Wood
79%
OGC@ 13% O2
83
CO% @ 13% O2: Wood
0.09
Particulates mg/NM3
24

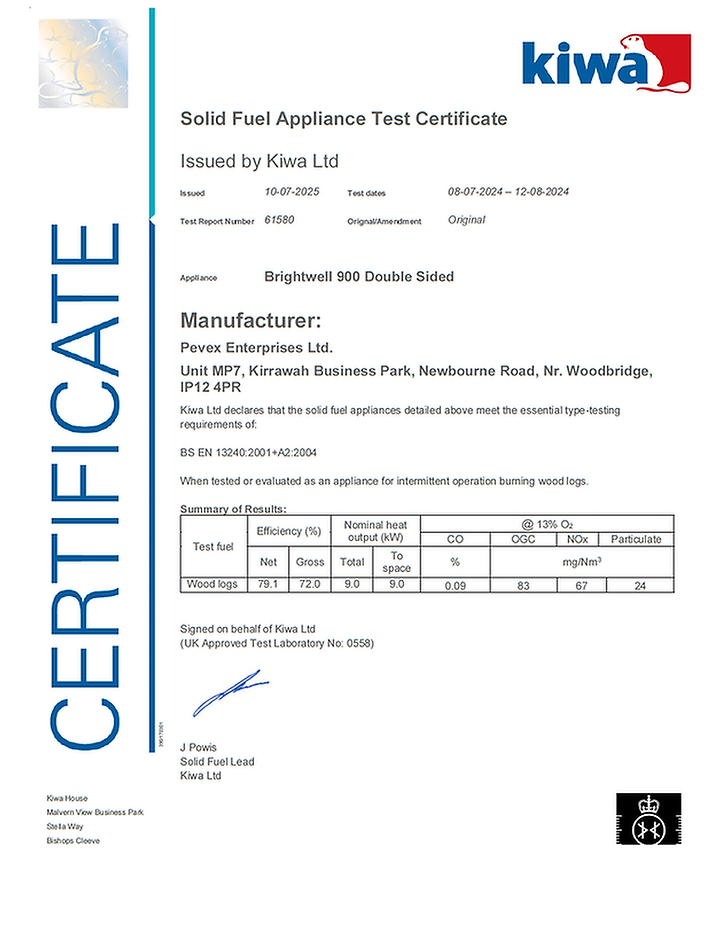

Certified
UKCA
Ecodesign
✓
Defra approved
Tested to

BRIGHTWELL 900 DOUBLE SIDED DRAWINGS

Brightwell 900 Double Sided outline dimensions

Brightwell 900 DS

BW900 Double on 200mm logstore_edited_ed

Brightwell 900 DS
200mm logstore

Brightwell 900 Double Sided with 300mm l

Brightwell 900 DS
300mm logstore

DOWNLOADS AND TECHNICAL INFORMATION

TRUSTED BRITISH DESIGN AND MANUFACTURE

British Made

BRITISH
MADE

Ecodesign Compliant
A energy performance_edited.jpg
Eco Smoke Control Tested Emblem.png

ECODESIGN
COMPLIANT

A ENERGY RATING

DEFRA EXEMPTION PENDING
